EEGFrontier/bom

BOM and Price Notes (EEGFrontier V1)

This folder contains the Bill of Materials references, price snapshots, and purchase/cart screenshots used for the EEGFrontier V1 prototype.

Important Notes

• Prices are a snapshot and may change over time.
• Shipping/import costs can vary by country and carrier.
• The USD values below follow the original CSV notation and include mixed formatting from the vendor/cart screenshots.

Files in This Folder

• ibom.html - Interactive BOM export
• pcb_bom.png - BOM placement/table screenshot
• assets/ - Vendor/product/cart screenshots

Price Table (replicated from Prices.csv)

URL / Vendor	Item	Qty	Product + Shipping	USD (5.14 BRL/USD)
https://www.santoantoniodist.com.br/eletrodo3m/prod-9760997/	Eletrodo 3M	1x50	R$ 37,90 + R$ 24,20	USD $12,08
https://shop.neurospec.com/1-5mm-touchproof-female-to-open-lead-cable-5-pack	1.5mm Touch-Proof (TP) Female to Open Lead Cable (5/pack)	2x5	R$ 413,81 + R$ 283,75	USD $135,70
br.mouser.com	ADS1299-4PAGR	1x1	Included in Mouser cart	Mouser Cart: $79.85
www.digikey.com.br	Push Button	1x1	Included in DigiKey cart	DigiKey Cart: $46,83
br.mouser.com	Header 1x08	1x1	Included in Mouser cart	Mouser Cart: $79.85
br.mouser.com	LEDs 0805	1x2	Included in Mouser cart	Mouser Cart: $79.85
www.digikey.com.br	0805 Resistors	1x11	Included in DigiKey cart	DigiKey Cart: $46,83
www.digikey.com.br	1µF 0603 capacitor	1x1	Included in DigiKey cart	DigiKey Cart: $46,83
www.digikey.com.br	100nF 0603 capacitor	1x5	Included in DigiKey cart	DigiKey Cart: $46,83
www.digikey.com.br	10µF 1206 capacitor	1x6	Included in DigiKey cart	DigiKey Cart: $46,83

Estimated Total

• Total: $274,46 (as recorded in the original price sheet)

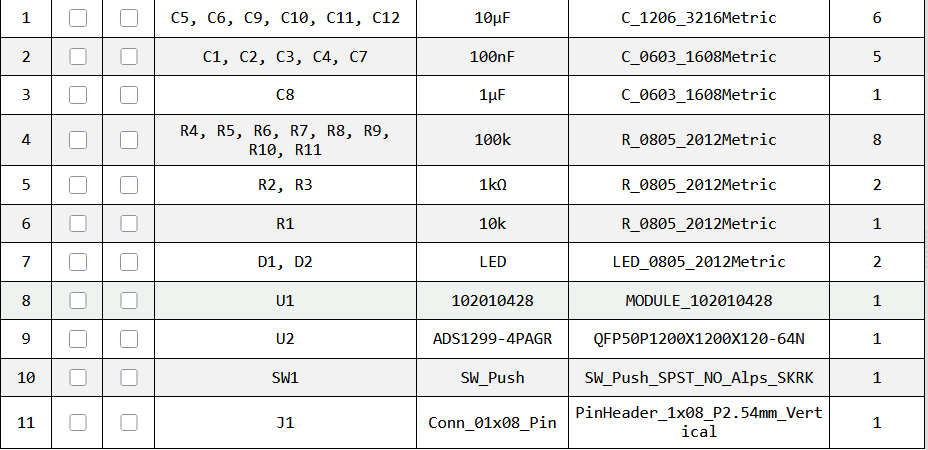

BOM / Placement Reference

Component / Purchase References

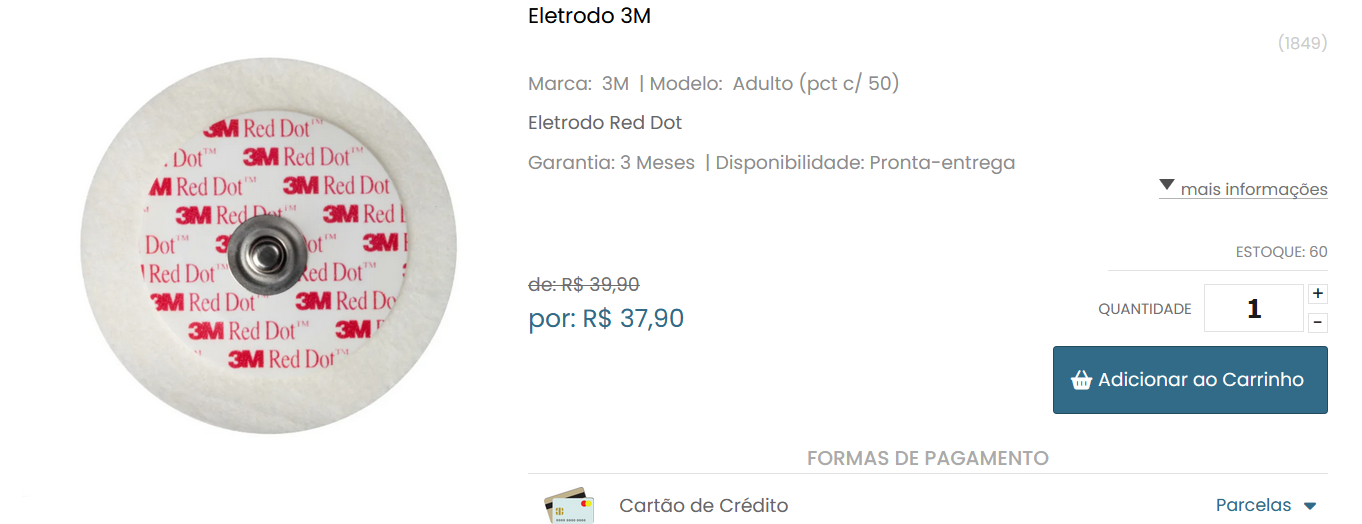

Electrodes (3M Red Dot)

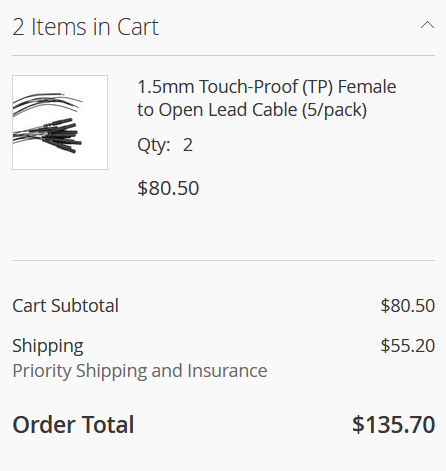

Touch-Proof Cables

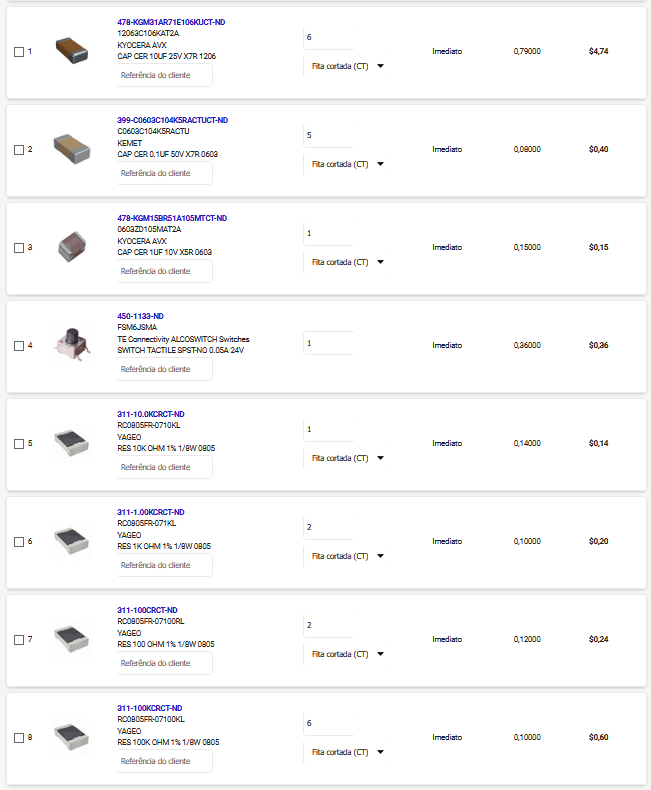

DigiKey Items (components list)

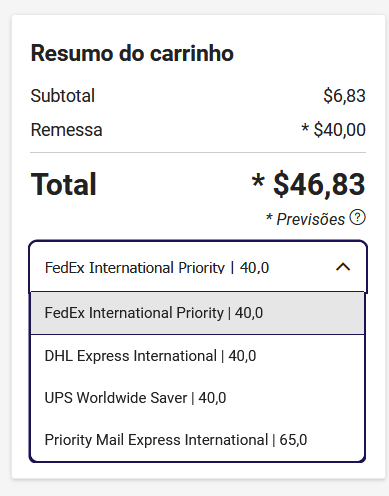

DigiKey Cart Summary

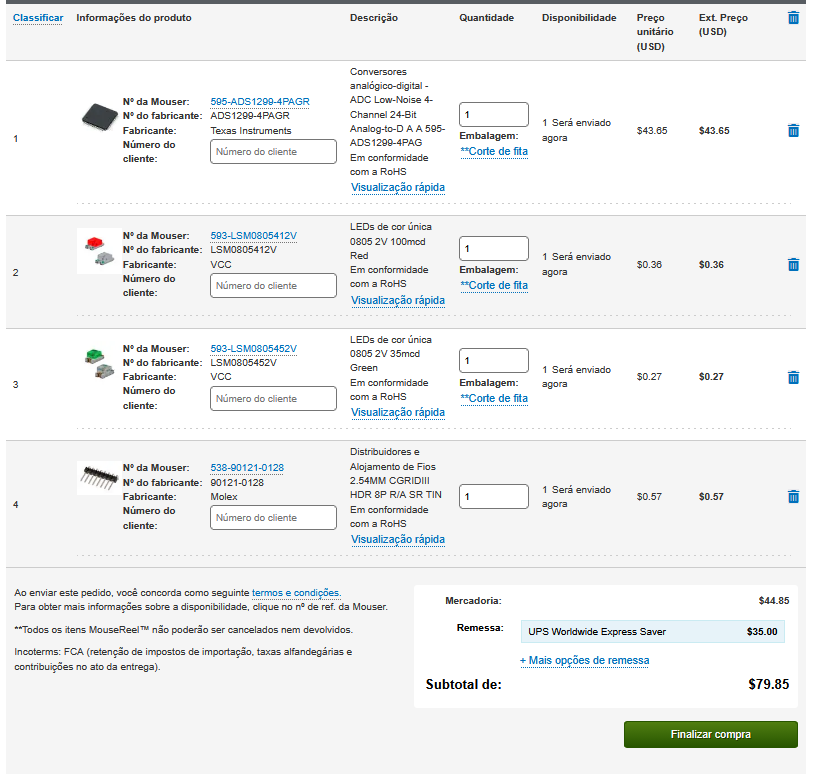

Mouser Cart Summary

Notes for Rebuilds

• Re-quote Mouser and DigiKey carts before ordering.
• Confirm local availability/substitutions for passives and LEDs.
• Review ibom.html together with the KiCad PCB file before assembling.
