README.md

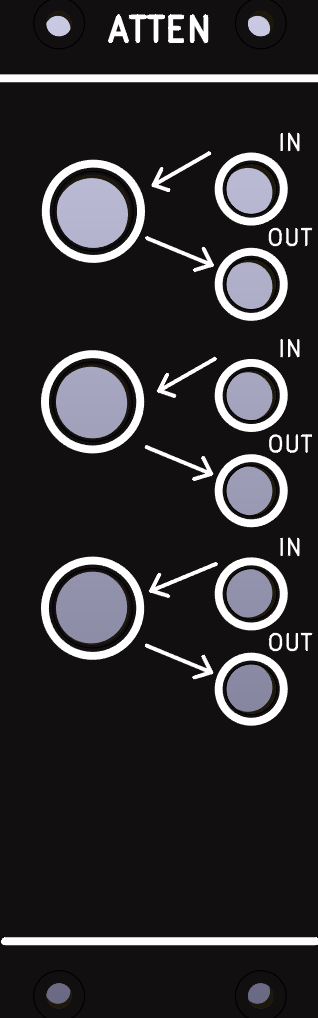

Triple Attenuverter Circuit

3 simple attenuverters, jumpers on the back can be used to change them into passive attenuators, no power supply is needed in that case.
