README.md

Switch

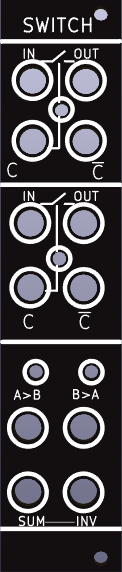

Two Voltage Controlled Switches with analog logic outputs based on https://www.schmitzbits.de/switch.html

BUY THE FRONT AND BACKBOARD SEPERATELY. The first version of the SWITCH module had some bugs and a needlesly complicated circuitry. The board in the Folder "Switch2" is compatible to the front and uses a DG412 IC.

Can be used as switches, SPDT switch, comparator, inverters, MIN/MAX.
