[Update component request]: Update ADuM4160 pinout to prevent pin-swapping #21

New Issue
Open
opened 2023-08-29 13:30:03 +00:00 by AllSpiceAlice · 0 comments
AllSpiceAlice commented 2023-08-29 13:30:03 +00:00
Owner
Copy Link

Requested changes

Update symbol to match datasheet

Affected components

ADuM4160

Description

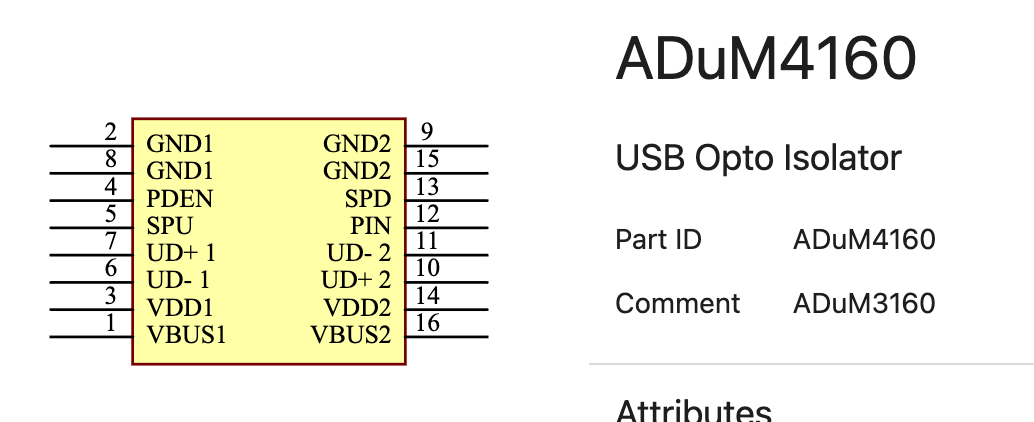

The digital pin polarity is switched on our symbol and has caused signals to be flipped.

Checklist

  • Checked library for existing parts
  • Price check
  • QTY check
  • Lead time check
  • Distributor part number
  • Datasheet review
  • Symbol review
  • Footprint review
  • Component check (symbol+footprint review)
  • Package check
  • Dimension check
  • Automotive grade
  • Space grade
  • FMEA analysis
### Requested changes Update symbol to match datasheet ### Affected components ADuM4160 ### Description ```true The digital pin polarity is switched on our symbol and has caused signals to be flipped. ``` ### Checklist - [ ] Checked library for existing parts - [ ] Price check - [ ] QTY check - [ ] Lead time check - [ ] Distributor part number - [ ] Datasheet review - [ ] Symbol review - [ ] Footprint review - [ ] Component check (symbol+footprint review) - [ ] Package check - [ ] Dimension check - [ ] Automotive grade - [ ] Space grade - [ ] FMEA analysis
