gautam commented 2024-08-14 04:11:12 +00:00
First-time contributor
Copy Link

Merging Rev 1.4 baseline files into main.

Merging Rev 1.4 baseline files into main.
gautam added 1 commit 2024-08-14 04:11:13 +00:00
Baseline commit for Rev 1.4 files 4da6336936
gautam reviewed 2024-08-14 04:31:52 +00:00
AM437X_INDUSTRIAL_EVM_3K0008_schematic_REV1_4A.pdf
gautam commented 2024-08-14 04:14:23 +00:00
Author
First-time contributor
Copy Link

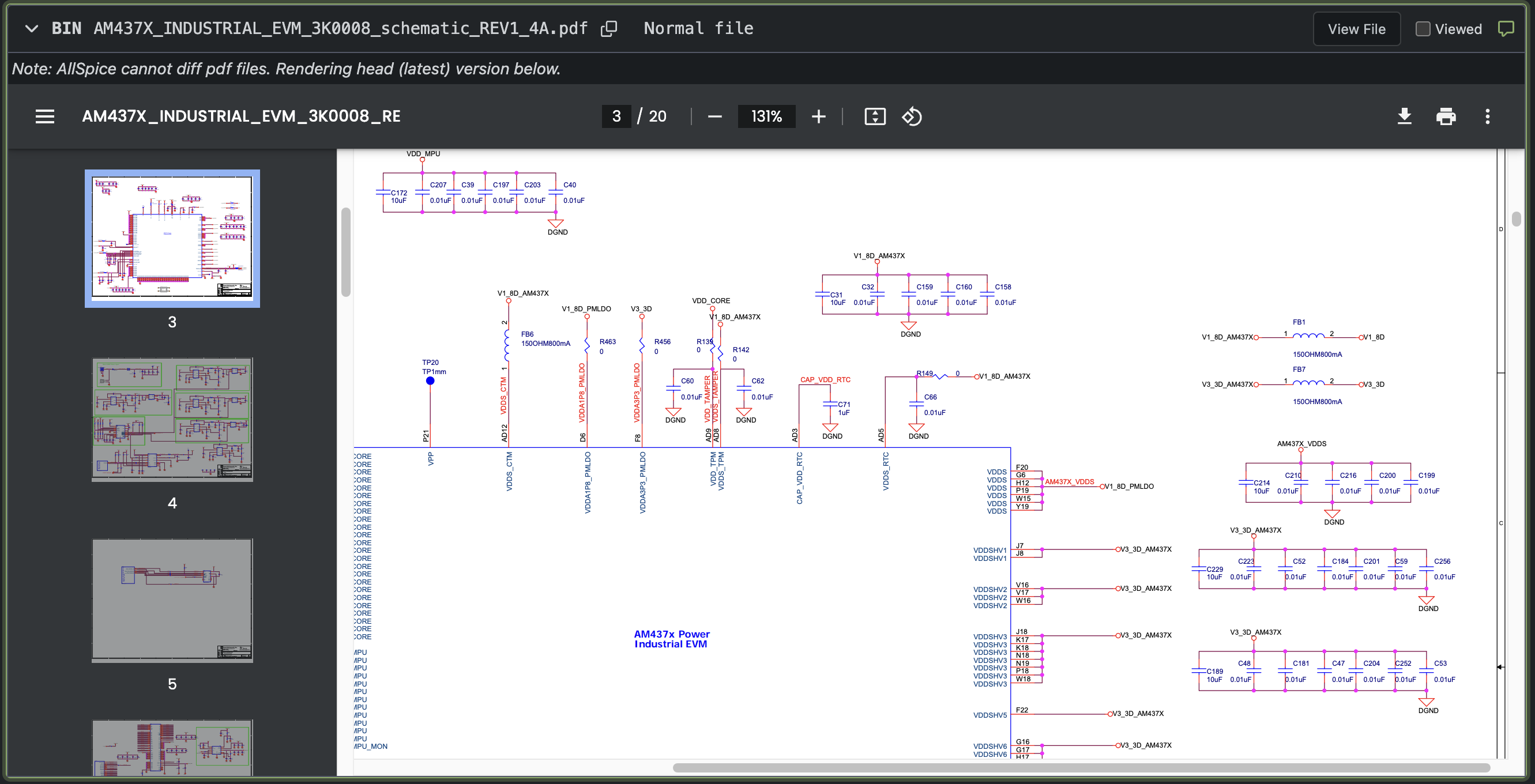

@daniel Is the bulk capacitance here enough on AM437 core power? Page 3, right side on bulk and decoupling caps.

![image](/attachments/694ad269-e045-4fea-baf9-df2898fc78fd) @daniel Is the bulk capacitance here enough on AM437 core power? Page 3, right side on bulk and decoupling caps.
493 KiB
gautam commented 2024-08-14 04:31:24 +00:00
Author
First-time contributor
Copy Link

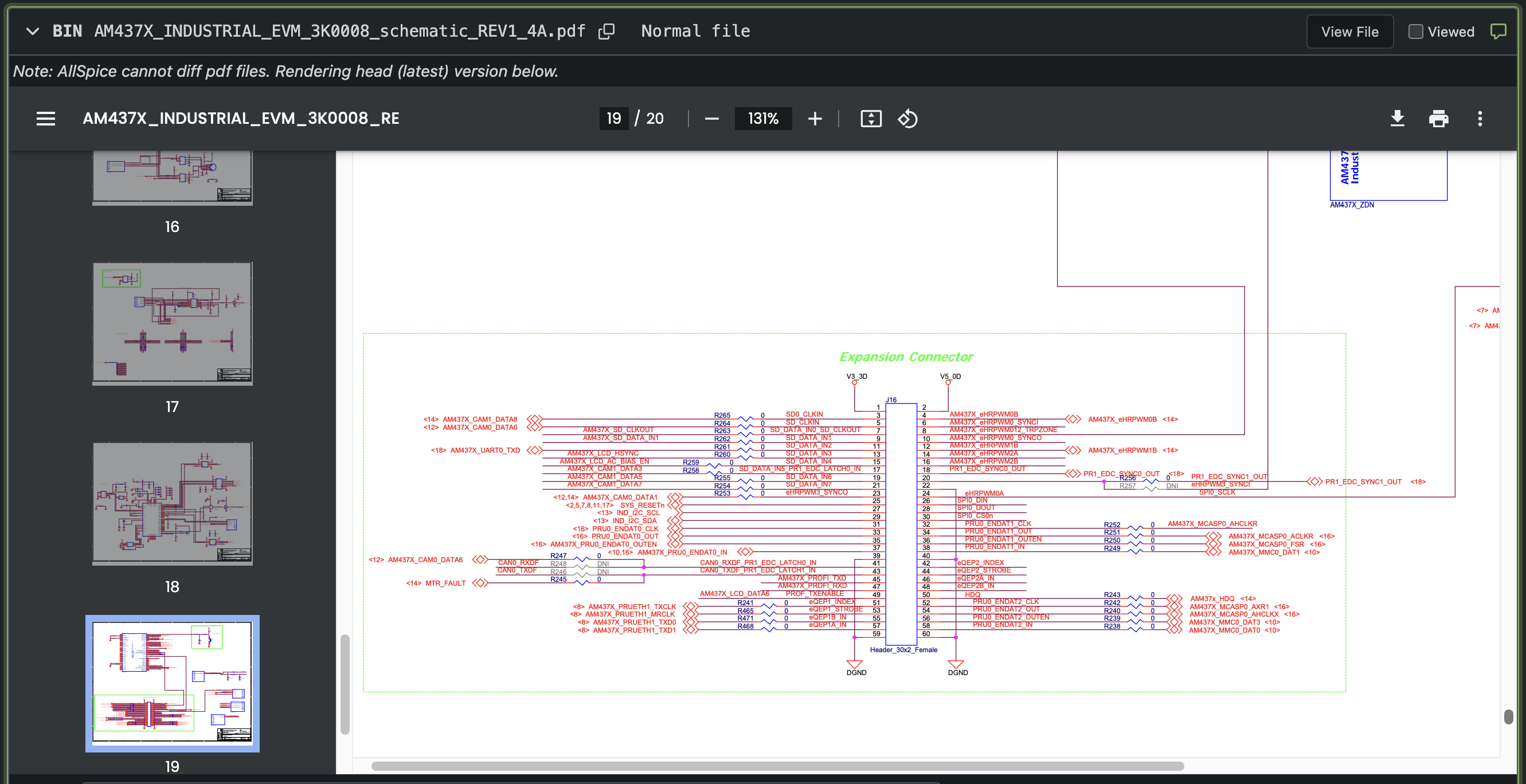

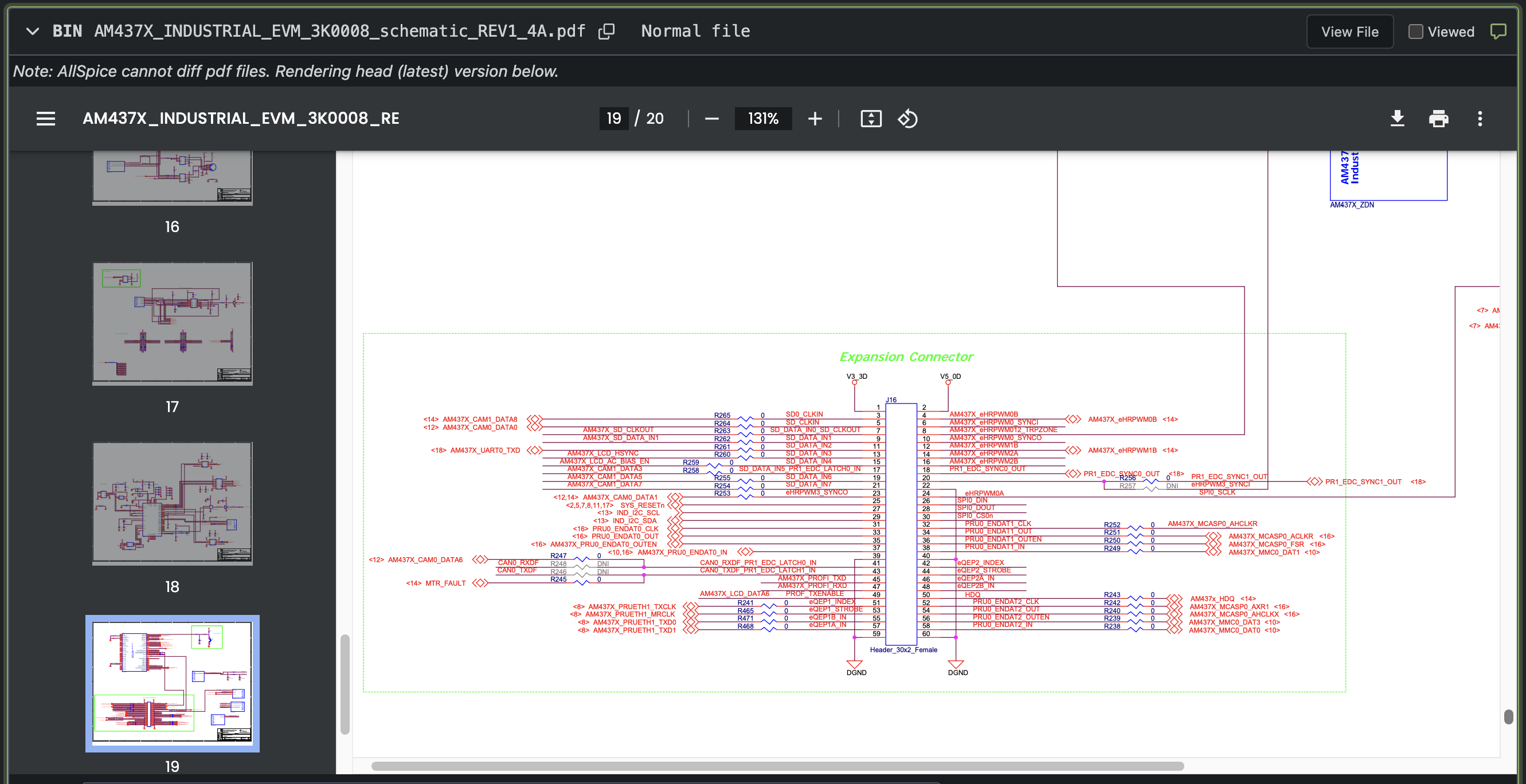

@daniel, do we need I2C and SPI brought out to an additional 100mil test header for bringup and experimentation? Page 19, expansion connector.

![image](/attachments/a0241224-b027-48ef-a68d-7c1069808a3a) @daniel, do we need I2C and SPI brought out to an additional 100mil test header for bringup and experimentation? Page 19, expansion connector.
590 KiB
allspice-hermes reviewed 2024-08-15 17:13:53 +00:00
AM437X_INDUSTRIAL_EVM_3K0008_schematic_REV1_4A.pdf
allspice-hermes commented 2024-08-15 17:13:53 +00:00
Owner
Copy Link

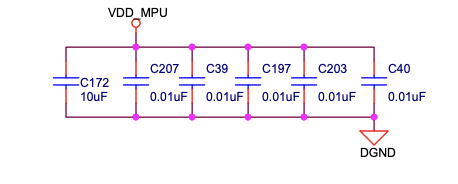

Hey let's double check this

![image](/attachments/d7d4b346-31b4-458d-b000-4ac267083c50) Hey let's double check this
16 KiB
