OpenFC

Open-source Betaflight flight controller with integrated break-off ELRS receiver, based on the RP2354B microcontroller.

Features

Microcontroller

RP2354B - Raspberry Pi dual-core ARM Cortex-M33 @ 150MHz (with integrated flash)

Integrated ELRS Receiver (Break-off)

On-board 2.4GHz ExpressLRS receiver module
Break-off design allows for different placement if needed

Sensors

IMU: LSM6DSV16XTR
Barometer: BMP388

Blackbox Data Logging

BY25Q128ASWIG - 128Mbit (16MB)

Motor Outputs

4x PWM/DShot motor outputs

Analog OSD on PIO

Hardware implementation of opamp and mux to detect syncs and select between white and black pixels. Needs software implementation still.

Connectivity

USB-C - Configuration and firmware flashing
UART0 - Serial RX/TX (ELRS connection pads)
UART1 - Spare serial port
PIO UART - Software UART via RP2350 PIO (2x)
I2C - External sensor expansion
SPI - IMU and Blackbox on isolated bus.

Analog Inputs

Current sensor input (ADC)
RSSI input (ADC)
1 external available ADC input

Additional Features

Addressable LED strip output (WS2812/NeoPixel)
Buzzer output
16 LED's built in on corners
ELRS ESP flashable by the RP2354B (BOOT/EN pins connected)

Power

2S-6S batteries
12V and 5V regulated outputs, 12V is switchable

Repository Structure

OpenFC/
├── README.md
├── hardware/          ← KiCad project, libraries, and production files
│   ├── OpenFC.kicad_pro
│   ├── *.kicad_sch    ← Hierarchical schematics
│   ├── OpenFC.kicad_pcb
│   ├── lib.kicad_sym  ← Custom symbol library
│   ├── lib.pretty/    ← Custom footprint library
│   ├── lib.3dshapes/  ← 3D models
│   └── tools/         ← Analysis scripts

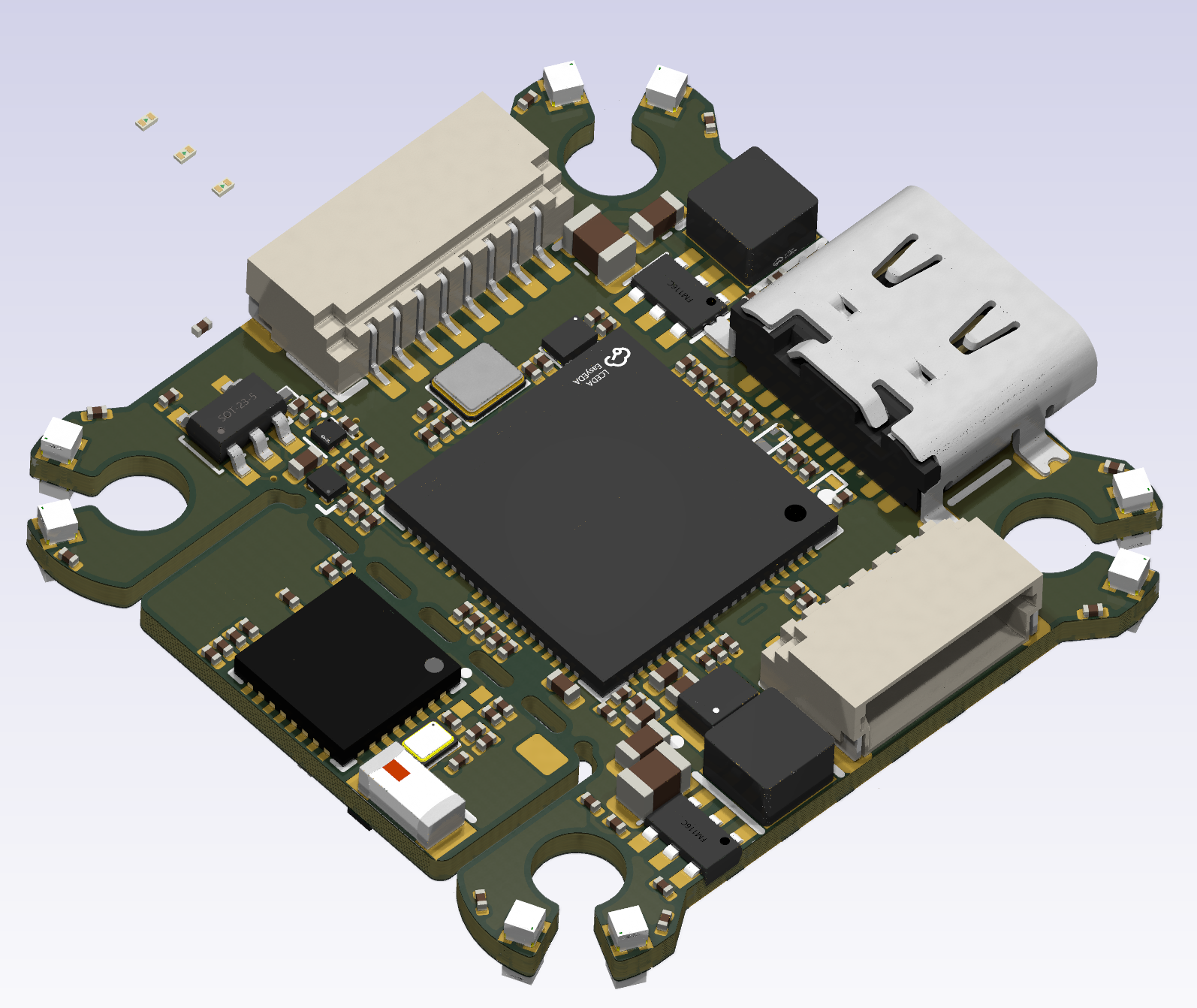

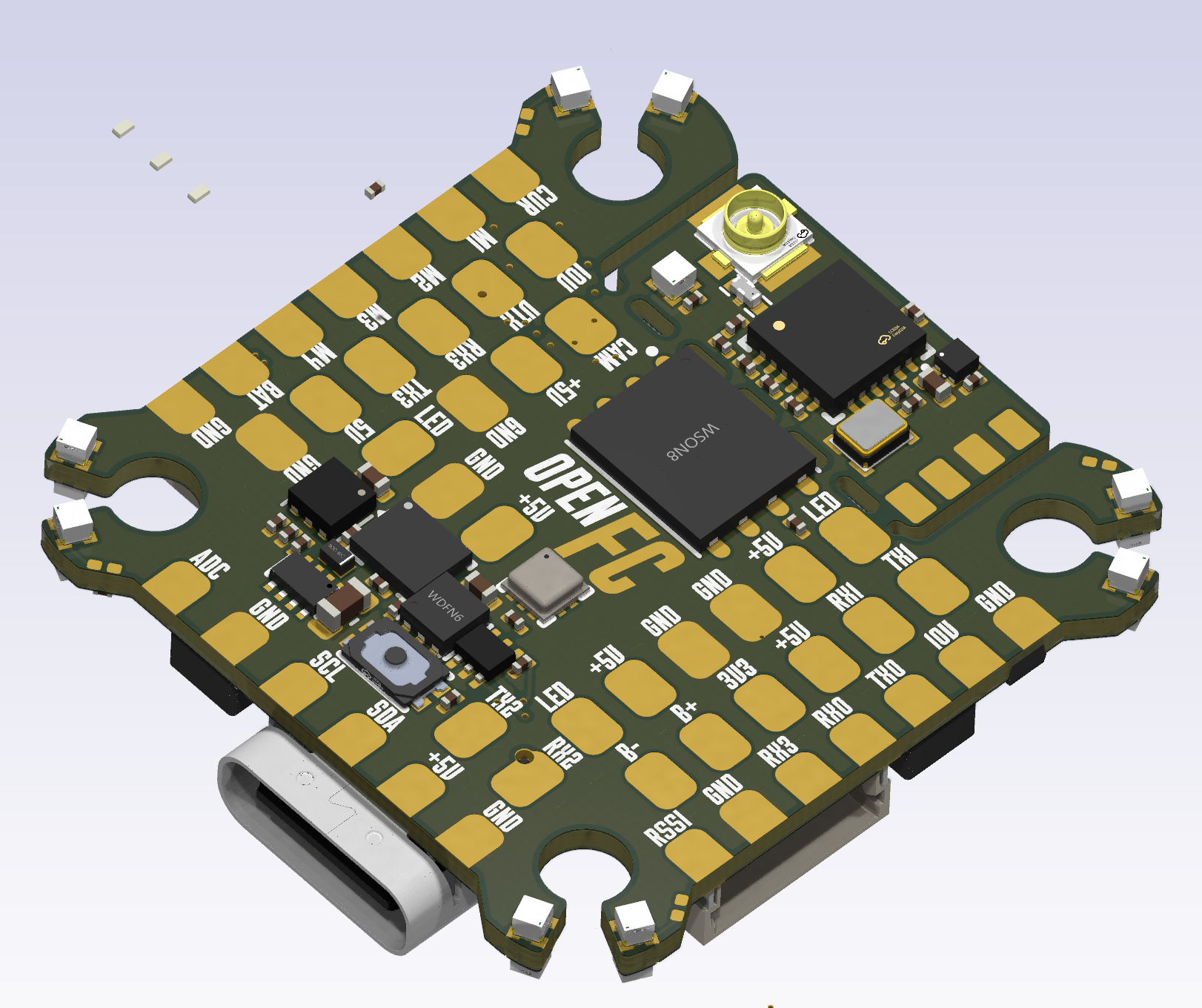

└── images/            ← Board renders

All symbol, footprint, and 3D model libraries are included in the repository — no external library setup required.

Schematic Hierarchy

OpenFC.kicad_sch - Top-level schematic
rp2350a.kicad_sch - RP2354B microcontroller and supporting circuitry
elrs.kicad_sch - ELRS 2.4GHz receiver module (break-off section)
power.kicad_sch - Power supply and regulation
imu.kicad_sch - LSM6DSV16XTR IMU
baro.kicad_sch - BMP388 barometer
compass.kicad_sch - LIS3MDLTR magnetometer (not populated, but there's space for it)
blackbox.kicad_sch - BY25Q128 flash memory
leds.kicad_sch - Status LEDs
osd.kicad_sch - OSD circuitry
connectors.kicad_sch - External connectors
pads.kicad_sch - Solder pads and test points

License

Licensed under CERN-OHL-S-2.0. See LICENSE for details.
