PocketBeagle 2 is based on Texas Instrments AM6254 SoC, it's quad A53 cores can provides better performance than the original PocketBeagle. The new design comes with pre-soldered headers, 3-pin JST-SH 1.00mm uart debug port, USB-C port, MSPM0L1105, 512MB RAM, LiPo Battery charger, and optional eMMC storage.

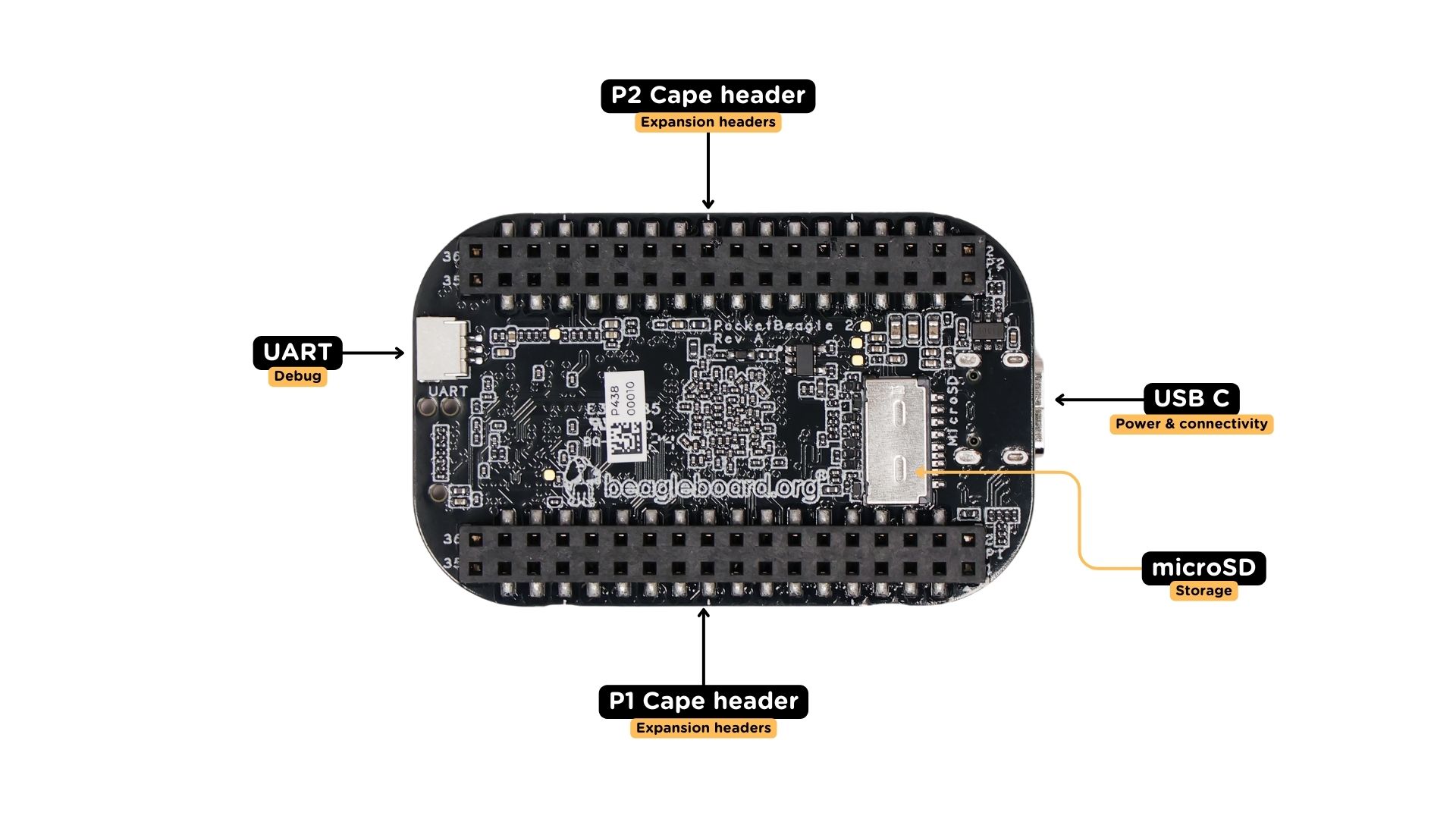

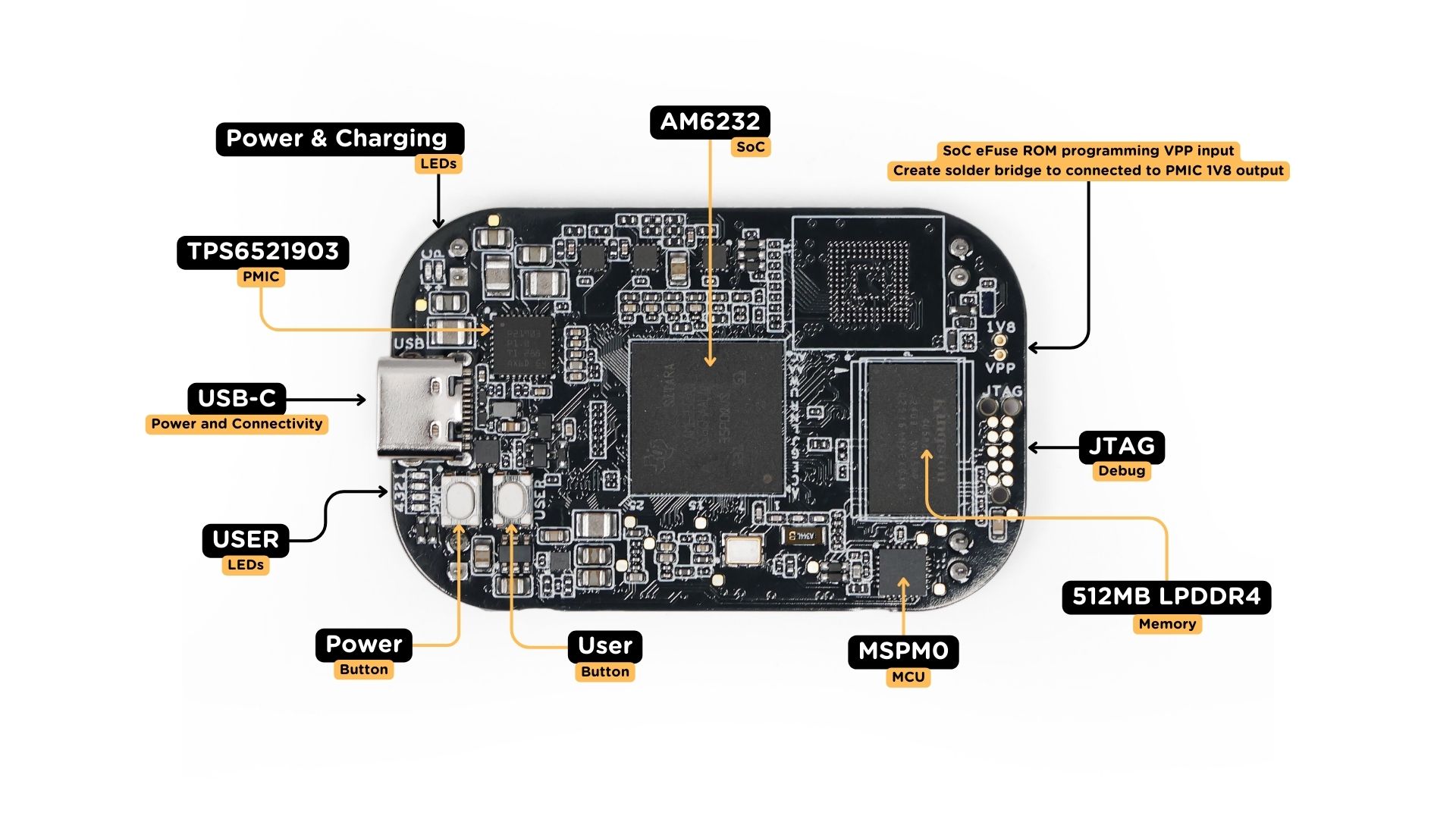

Component location - Rev A

Front	Back

Comparison table

Feature	PocketBeagle 2	PocketBeagle (original)
SoC	AM6254	AM3358
Arm CPU	Cortex-A53 (64-bit)	Cortex-A8 (32-bit)
Arm cores	4 x 1.4 GHz	1 x 1GHz
RAM	512MB DDR4	512MB DDR3

PocketBeagle 2 Features and Specification

	Feature
Processor	Texas Instrments AM6254 SoC
SDRAM Memory	512MB DDR4 (Kingston D2516AN9EXGXN-TU)
PMIC	TPS6521903
Debug Support	3 pin 3.3V JST-SH 1.00mm UART debug port (RPI debug probe compatible)
	10-pin JTAG TAG-CONNECT footprint
Power Source	USB C or Cape Header VIN (5V @ 1A)
PCB	55 x 35 mm
Indicators	1x Power, 1x Battery charging, and 4x User Controllable LEDs
SD/MMC Connector	microSD (1.8/3.3V)
User Input	1. Power Button
	2. User/Boot Button
Weight	12.7gm
