🧩 Component Check Workflow

This GitHub Actions workflow automates the validation of your Bill of Materials (BOM) on every pull request. It generates the BOM from a supported ECAD project file, displays a colorized preview, validates parts, and comments the results back to the PR.

flowchart LR
    A[PCB Project Files] --> B[Generate BOM]
    B --> C[Check BOM Attributes]
    C --> D[Post Component Review Comment<br/>in Design Review]

    style A fill:#0F375F,color:#FDFDFD,stroke:#0B1F31
    style B fill:#00915B,color:#FDFDFD,stroke:#0B1F31
    style C fill:#F7BD24,color:#0B1F31,stroke:#0B1F31
    style D fill:#EFE9DA,color:#0B1F31,stroke:#0B1F31

🔧 Workflow Overview

Trigger:
This workflow runs automatically on every pull_request.

Path:
.allspice/workflows/component-check-demo.yml


🛠️ Steps Performed

1. Checkout Repo

Fetches the repository source code.

- uses: actions/checkout@v3

2. 📚 Check Out Pretty-Print Utility

Clones the reusable colorized print module.

- run: git clone https://hub.allspice.io/Actions/pretty-print .allspice/pretty-print

3. 🏗️ Generate BOM

Uses the AllSpice generate-bom action to extract BOM data from an ECAD design file.

- uses: https://hub.allspice.io/Actions/generate-bom@v0.5

Inputs:

Input Value
source_path design/BeagleY-AI_SCH_Rev A_240426.DSN
columns .allspice/columns.yml
output_file_name bom.csv
group_by Part Number

4. 🖨️ Display BOM in Terminal

Runs the display_bom.py script to show a formatted and colorized BOM table in the Actions logs.

- run: python3 .allspice/pretty-print/display_bom.py bom.csv

5. 🗃️ Upload BOM Artifact

Makes the raw bom.csv downloadable via the GitHub Actions UI.

- uses: actions/upload-artifact@v3

6. 🐍 Set Up Python & Install Dependencies

Installs Python 3.11 and required libraries (jinja2, py-allspice).

- uses: actions/setup-python@v5
- run: pip install jinja2 py-allspice

7. 🔍 Component Validation

Runs custom BOM validation logic.

- run: .allspice/component_validation.py ./bom.csv

8. 💬 Comment Results on PR

Posts a markdown summary report as an AllSpice Design Review comment.

- run: .allspice/review_comment.py ...

📁 Required Files

Ensure your repo includes the following:

Path Purpose
.allspice/columns.yml Defines column mapping for BOM gen
.allspice/component_validation.py Custom component validation logic
.allspice/review_comment.py Posts validation results as comment
.allspice/pretty-print/ Cloned color-printing utility

📌 Notes

  • Additional Python dependencies can be added via a requirements.txt.

📸 Example Output

MPN                   Manufacturer     Quantity    Designator
---------------------------------------------------------------------
GRM0335C1E150JA01D    Murata           2           C17, C16
DMG1012T              Diodes Inc.      1           Q1
690-005-298-486       EDAC             1           J1
...

💬 Questions?

Reach out to the AllSpice team or open an issue in your repository for support.


---

Let me know if you'd like this README to include:
- Screenshots of output in GitHub Actions
- Instructions for running locally
- A section on customizing the validation script

BeagleY-AI

BeagleY®-AI is a powerful 64-bit quad core single board computer with GPU, DSP, and vision/deep learning accelerator.

Front Back
drawing drawing

OSHW Certification: https://certification.oshwa.org/us002616.html

Features and purchase information at https://beagley-ai.org

Features

Feature Description
Processor TI AM67 with Quad core 64-bit Arm® Cortex®-A53, GPU, DSP, and vision/deep learning accelerators
RAM 4GB LPDDR4
Wi-Fi BeagleBoard BM3301, 802.11ax Wi-Fi
Bluetooth Bluetooth Low Energy 5.4 (BLE)
USB Ports 4 x USB 3.0 TypeA ports supporting simultaneous 5Gbps operation, 1 x USB 2.0 TypeC supports USB 2.0 device
Ethernet Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
Camera/Display 1 x 4-lane MIPI camera/display transceivers, 1 x 4-lane MIPI camera
Display Output 1 x HDMI display, 1 x OLDI display
Real-time Clock (RTC) Supports an external button battery for power failure time retention. it is only populated on EVT samples.
Debug UART 1 x 3-pin debug UART
Power 5V/5A DC power via USB-C, with Power Delivery support
Power Button On/Off included
PCIe Interface PCI-Express® Gen3 x 1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
Expansion Connector 40-pin header
Fan connector 1 x 4-pin fan connector, supports PWM speed control and speed measurement
Storage microSD card slot, with support for high-speed SDR104 mode
Tag Connect 1 x JTAG, 1 x Tag Connect for PMIC NVM Programming

Components location

Front

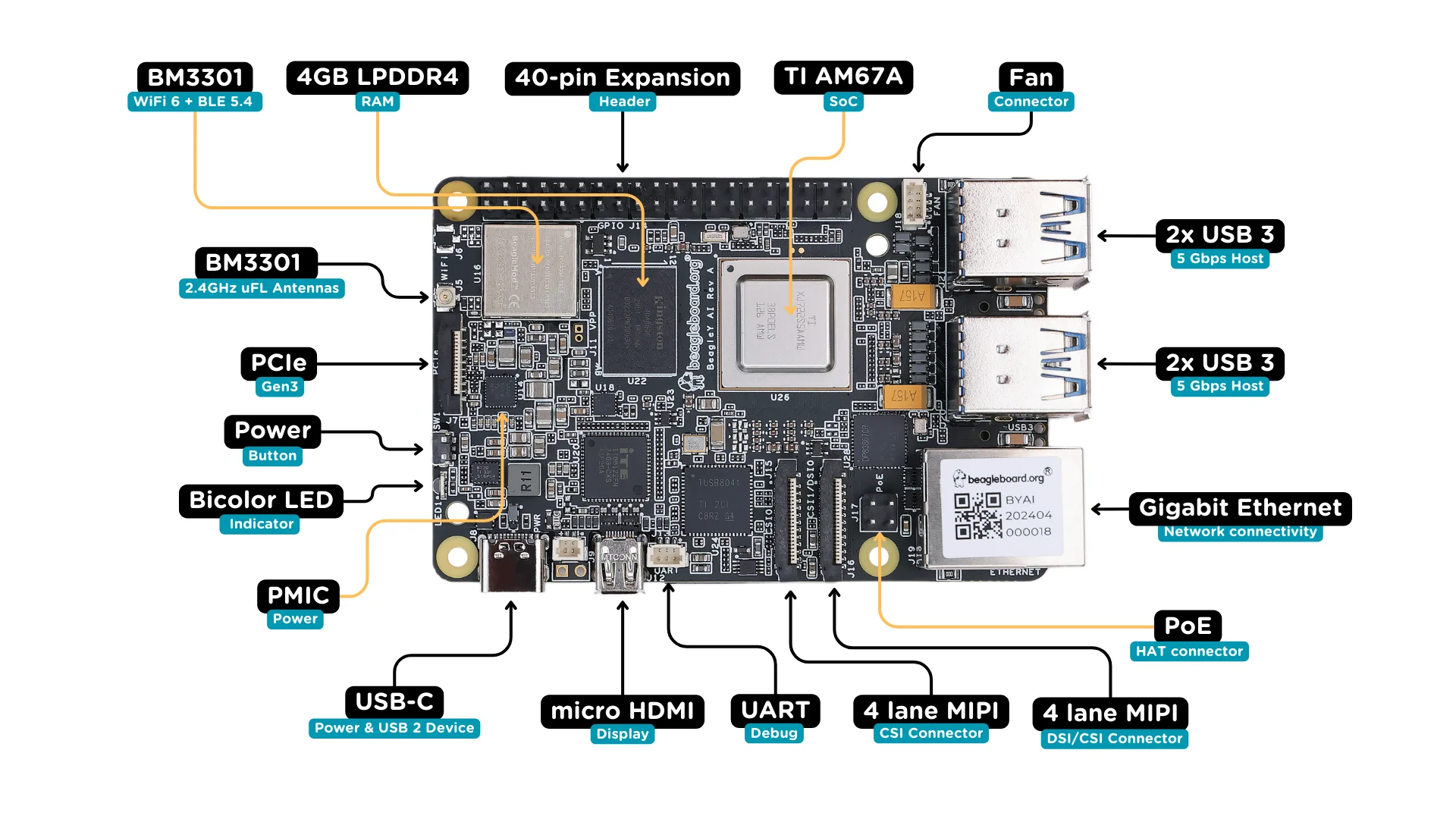

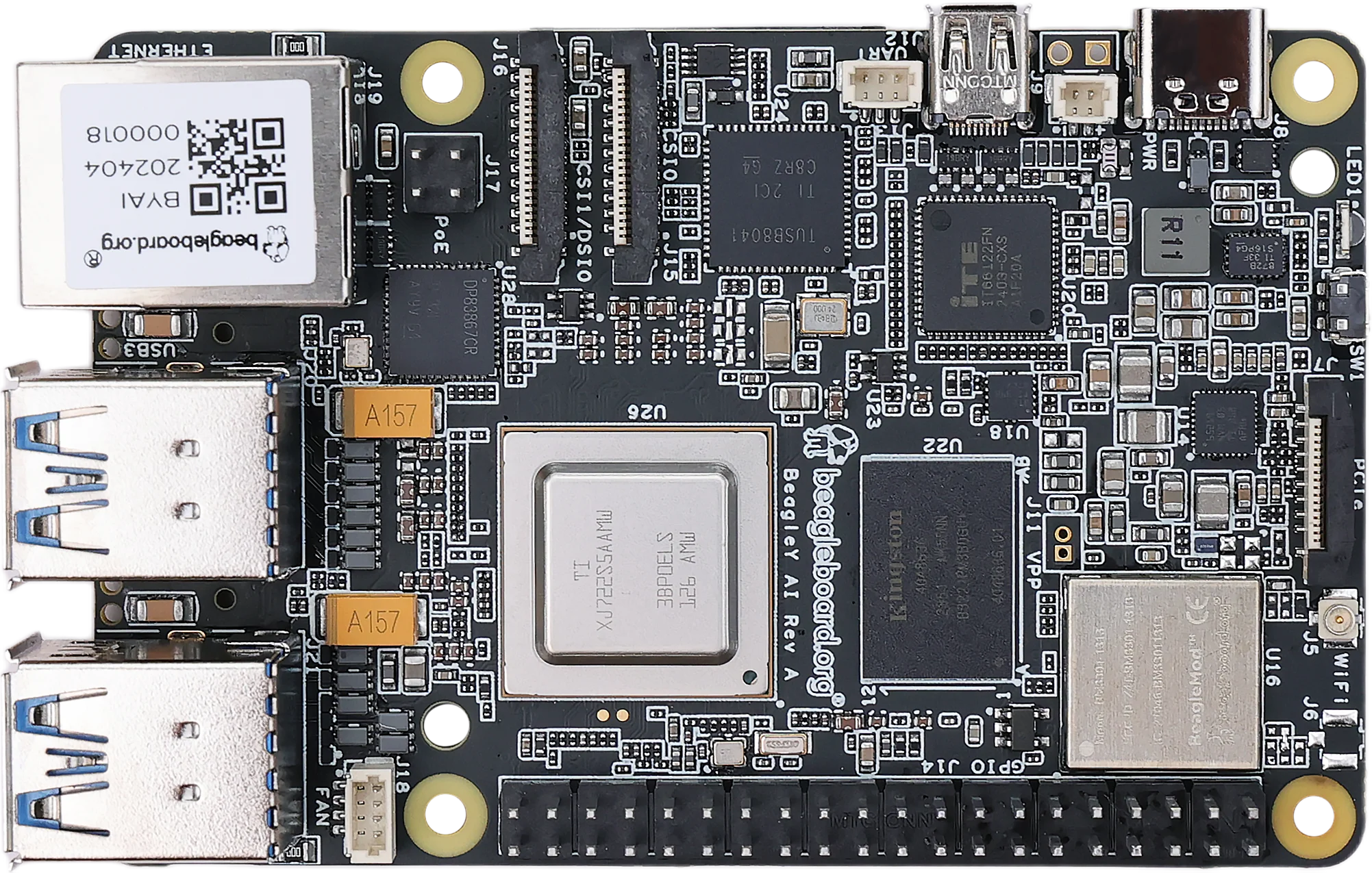

BegleY-AI front annotated

Back

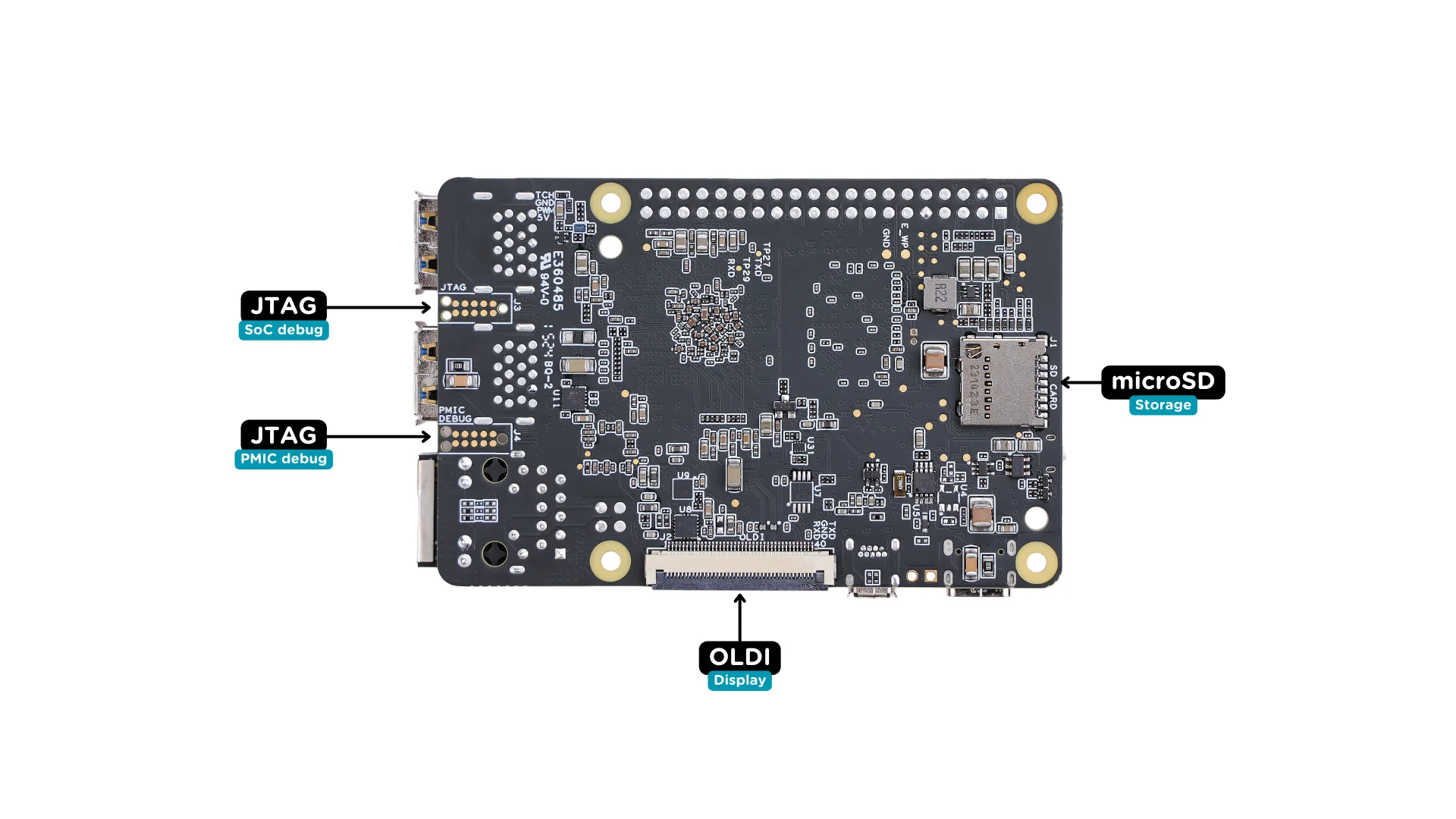

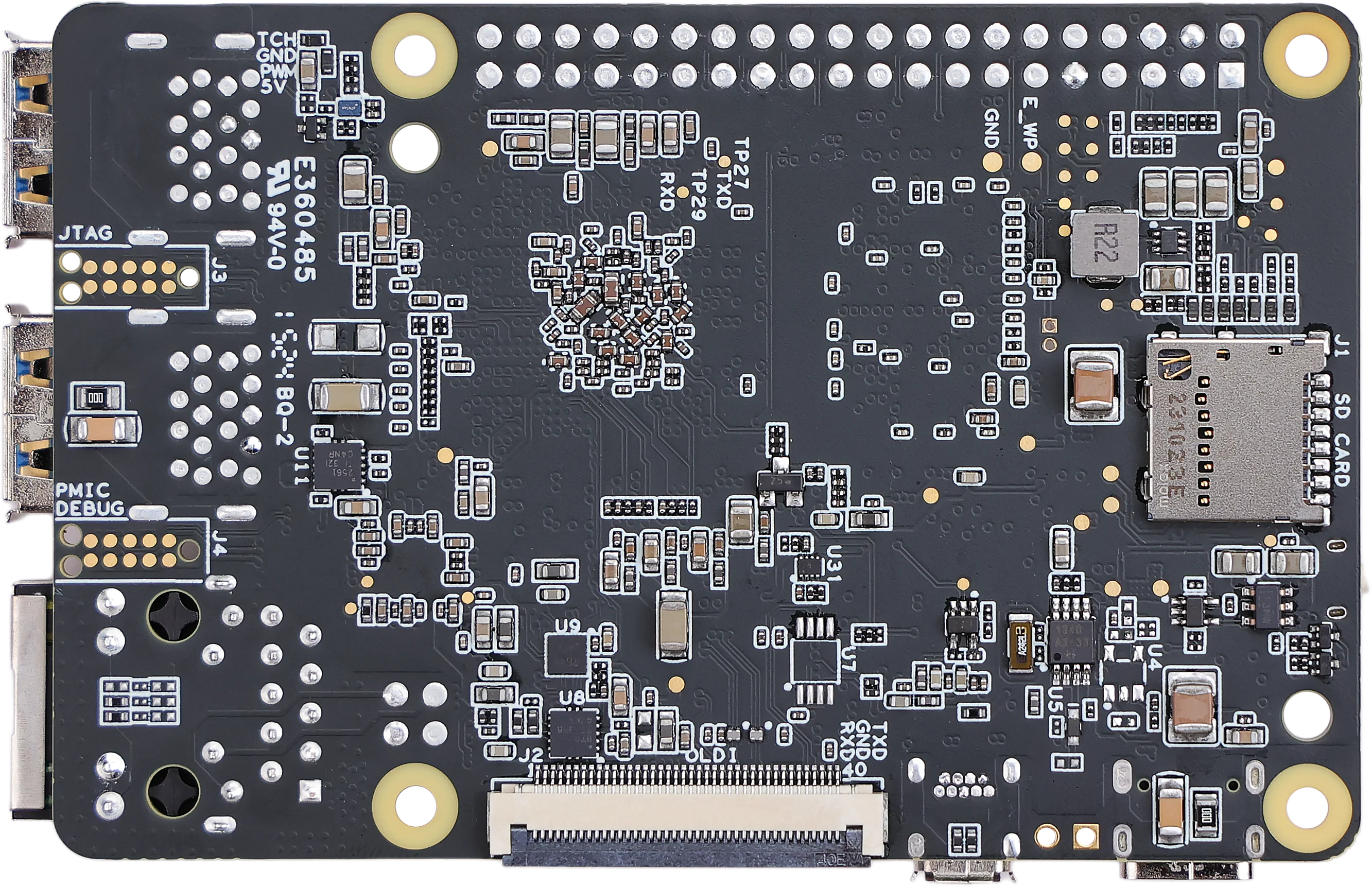

BeagleY-AI back annotated

Block diagram

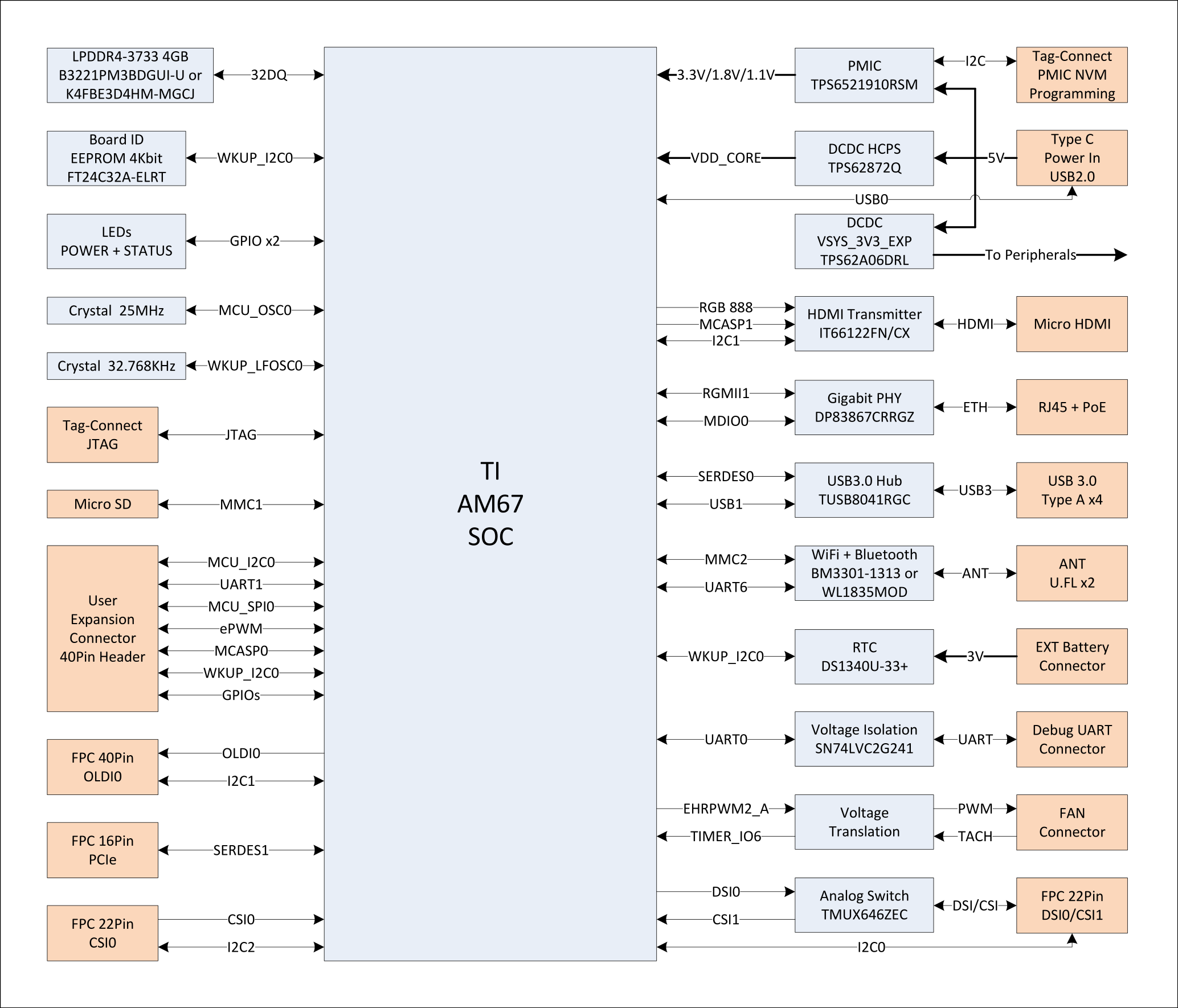

BeagleY-AI Block Diagram

Mechanical Drawing

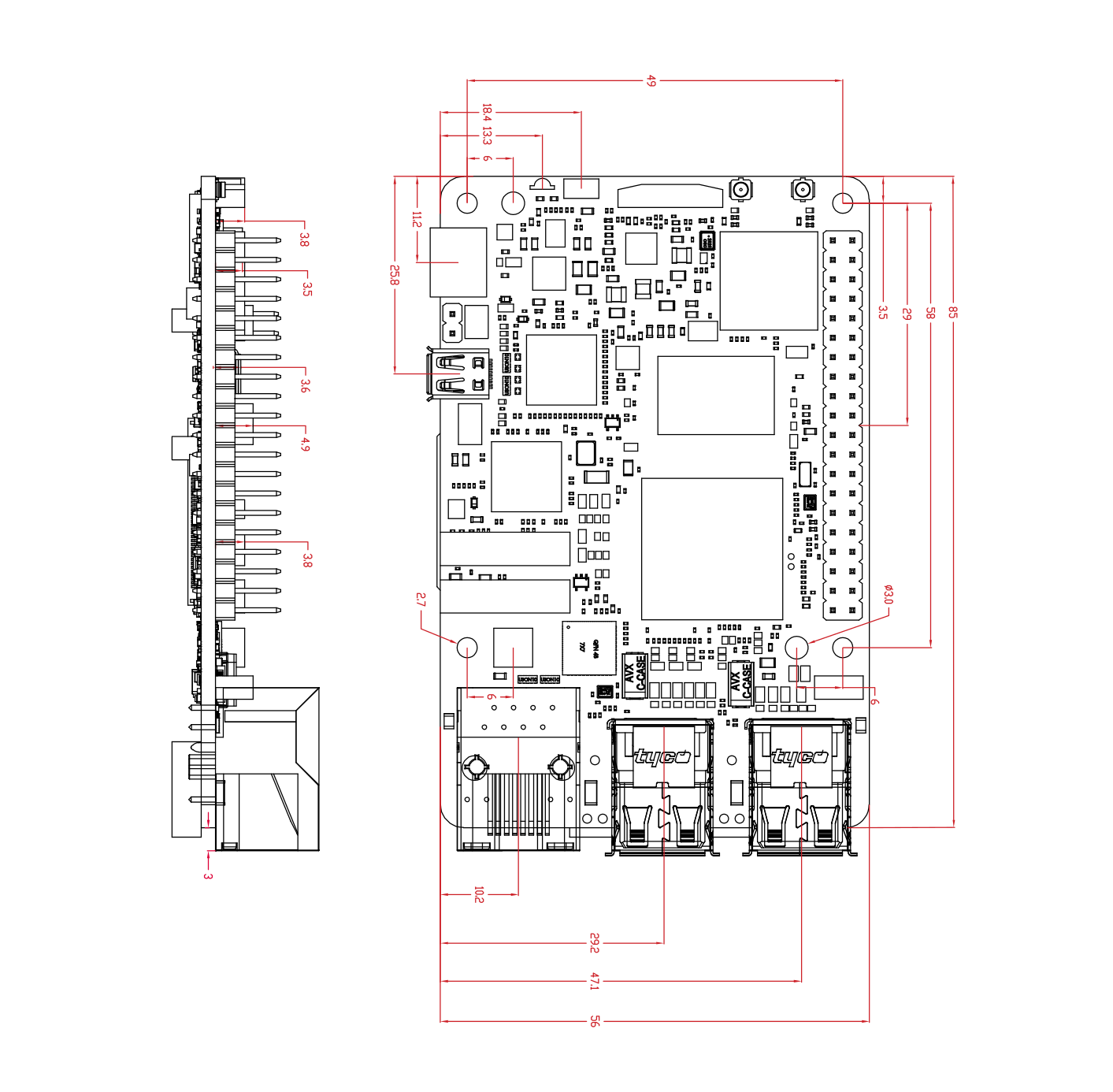

BeagleY-AI Mechanical Drawing

Description
Check components in design review before merging using Beagle AI (https://beagley-ai.org) reference design.
